How we source energy

Camden Gas Project

Safely supplying our share of NSW's gas needs since 2001.

Camden Gas Project

Project background

The Project has 144 wells completed up until 2012 to supply gas as part of the Camden Gas project.

Besides the wells, the other major element of the Camden Gas Project is the Rosalind Park Gas Plant in Menangle, where natural gas is collected via low pressure underground gathering lines, compressed, dried and made ready for use by households and businesses, and transmitted into the greater Sydney natural gas network.

In February 2016, AGL announced it will cease production at the Camden Gas Project in 2023. The Camden site and wells will be progressively decommissioned and the sites rehabilitated.

AGL's Camden Gas Project has been safely operating since 2001

Camden Gas Project update presentation (PDF)


The Project produces natural gas from coal seams throughout the Macarthur region of New South Wales. The field is located around 65 kilometres south-west of Sydney and operates within the Camden, Campbelltown and Wollondilly local government areas.

AGL's Camden well sites (PDF)

Blue crane being erected in open bushland

Camden workover activities

AGL’s Camden Gas Operations completed all planned workover activities for the probable future on the 28 April 2020. These may recommence if business needs arise.

AGL rig being assembled


The Camden Gas Project has been safely supplying gas from a total of 144 wells to Sydney homes and businesses since 2001. No additional wells have been drilled since 2012.


After a review of business activities, AGL announced in February 2016 that the Camden Gas Project will cease production in 2023. The Rosalind Park Gas Plant and gas wells will be progressively decommissioned and the sites rehabilitated.


Well decommissioning will require the use of a ‘Workover Rig’ (pictured below) and some auxiliary equipment on site. No drilling or fracture stimulation (‘fraccing’) will occur.


As at May 2023, we have 28 still producing, 4 either waiting for, or in the process of, decommissioning, and 112 fully decommissioned. The remaining wells will be progressively rehabilitated in the ongoing decommissioning.

How AGL decommissions coal seam gas wells

Decommissioning and rehabilitation is undertaken with a high level of regulatory oversight by the NSW Government’s Department of Planning and Environment, Department of Regional NSW and the NSW EPA as lead regulator, and to standards set in the NSW Government’s Code of Practice for Construction, operation and decommissioning of petroleum wells, found here.

The code of practice requires that petroleum well decommissioning ensures “the environmentally sound and safe isolation of the well, protection of groundwater resources, isolation of the productive formations from other formations, and the proper removal of surface equipment." The code of practice and petroleum production lease conditions require that:

  • the surface equipment is removed,
  • the subsurface water aquifers are kept isolated from each other and from the coal seams (hydrocarbon zones),
  • risk to future mining of the coal seams is minimised.


Coal seam gas well rehabilitation

In rehabilitating its well sites, AGL will ensure:

  • The equipment at the top of the well is safely removed.
  • Purpose-specific cement, which complies with the standards set by the NSW Government’s Code of Practice for Construction, operation and decommissioning of petroleum wells, is placed inside the well from bottom to top in stages.
  • This cement seals the wellbore and adds to the integrity of the well.
  • The well casing is cut off, at least 1.5 metres below the surface, so that it does not interfere with agricultural and other future land uses. A steel cap, containing data such as the name of the well, the well depth and when it was decommissioned, is welded to the top of the casing.
  • The decommissioning works are overseen by the NSW Department of Planning & Environment (DP&E) and the NSW Environment Protection Authority (EPA) which is the lead regulator for petroleum activities in NSW, and conducted within stringent health, safety and environment guidelines. A full report is provided to the regulator once all decommissioning works have been completed for each well.

The rig is usually set up on site for approximately 2-3 weeks.

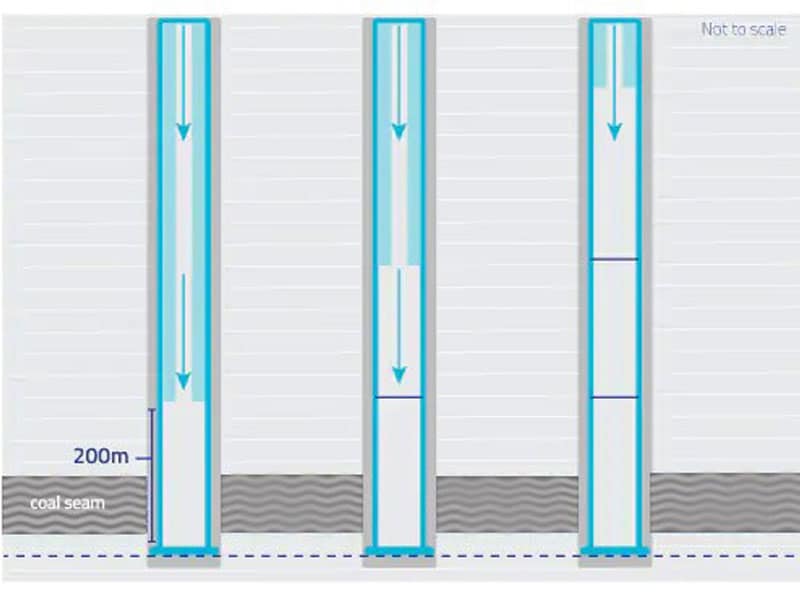

The first 200m-long cement plug is injected and allowed to set until it reaches minimum compressive strength as set by the NSW Government’s Code of Practice (usually overnight). It is then pressure-tested before adding the next cement plug. Cement is then placed in additional stages to fill the well and allowed to set.

Diagram of a perforated case well

The Well casing is cut to at least 1.5m below ground level. An information plate is welded to well casing, sealing it. A full report on each decommissioned well is sent to relevant government agencies. The locations of decommissioned wells are kept on a live map at MinView website maintained by Department of Regional NSW, Mining, Exploration and Geoscience available at Minview.
